Sprocket wheels set. Gear set. CNC routing, Laser cutting, 3D printing, Hand cut digital files: svg, dxf, pdf, jpg, stl

Sprocket wheels set. Gear set. CNC routing, Laser cutting, 3D printing, Hand cut digital files: svg, dxf, pdf, jpg, stl

Įprasta kaina €3,20 EUR
Įprasta kaina Išpardavimo kaina €3,20 EUR
Išpardavimas Išparduota
Siuntimo išlaidos apskaičiuojamos atsiskaitant.

Sprocket wheels. Gear. For CNC routing, Laser cutting, 3D printing, Hand cut. Digital files: svg, dxf, pdf, jpg, stl

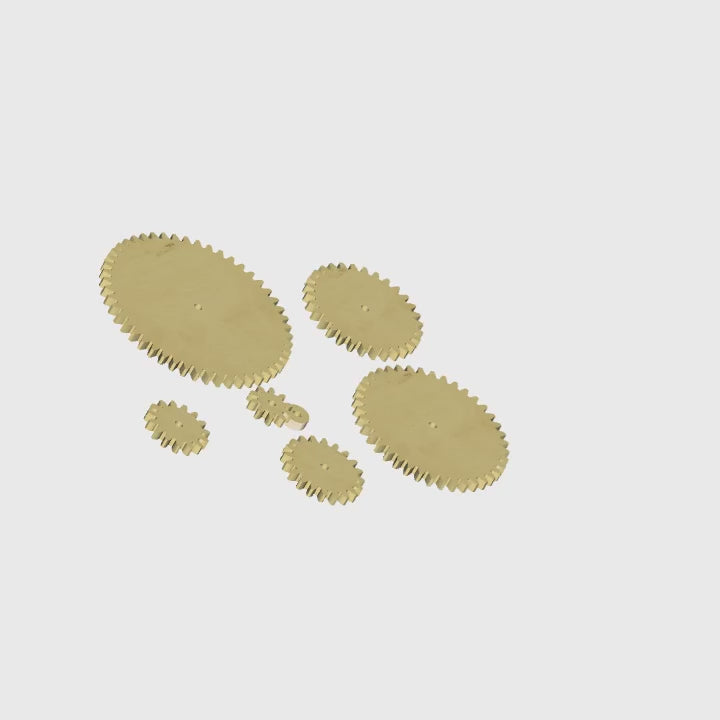

A set of gears is a great tool to help you make moving toys, decorations, or moving mechanisms. A large selection of gears will provide a variety of options for choosing the required speed transmission ratio.

The dimensions of the gears are selected so that they can be produced using different tools: CNC router, laser cut, 3D printer or hand cut. Various materials can be used for the production of gears: Plywood, wood, acrylic, cardboard...

Sprocket wheels measurement:

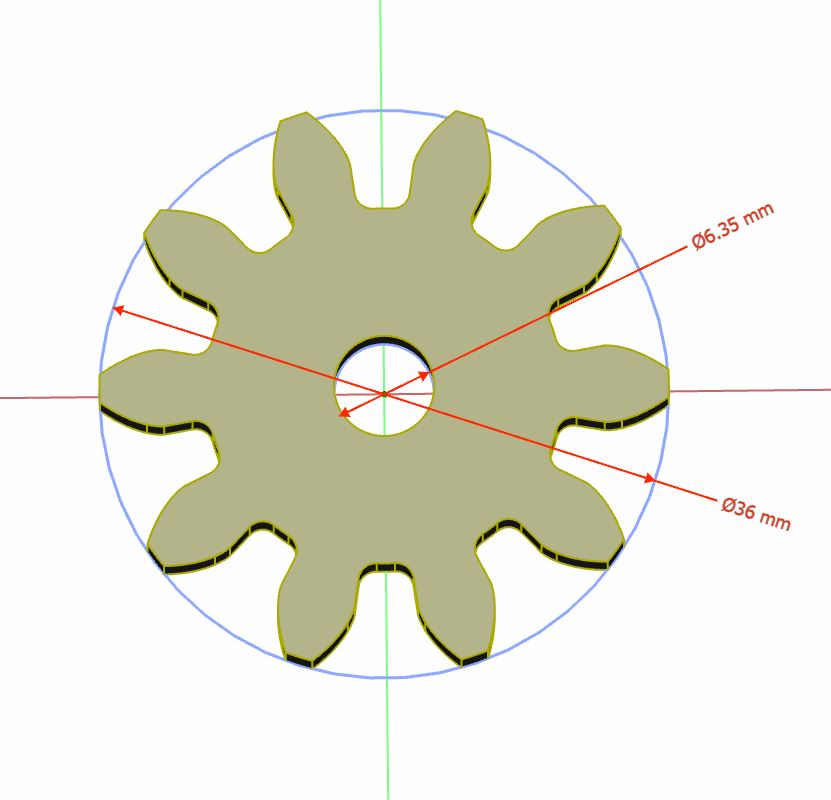

10T: material thickness 8 mm (0,315 in), hole 6,35 mm (0,25 in), outer diameter 36 mm (1,41 in);

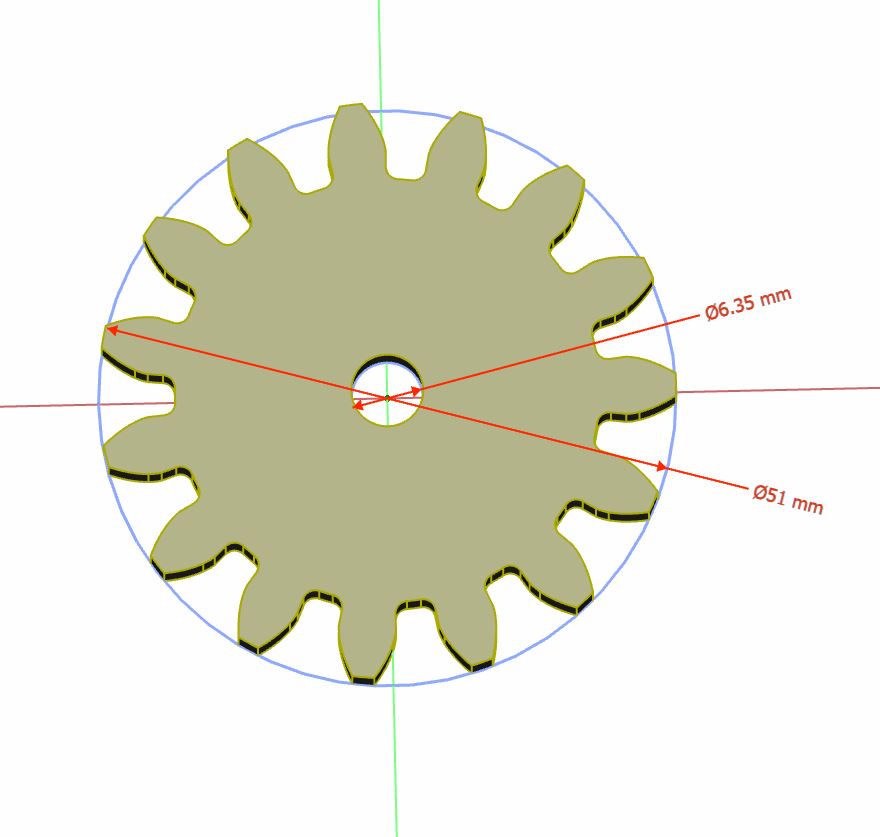

15T: material thickness 8 mm (0,315 in), hole 6,35 mm (0,25 in), outer diameter 51 mm (2 in);

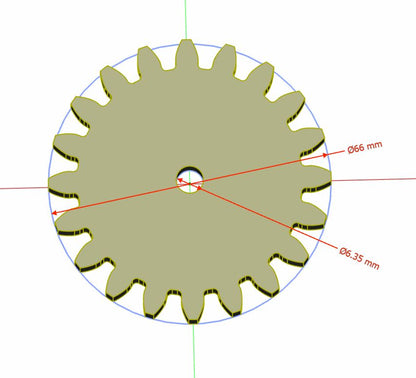

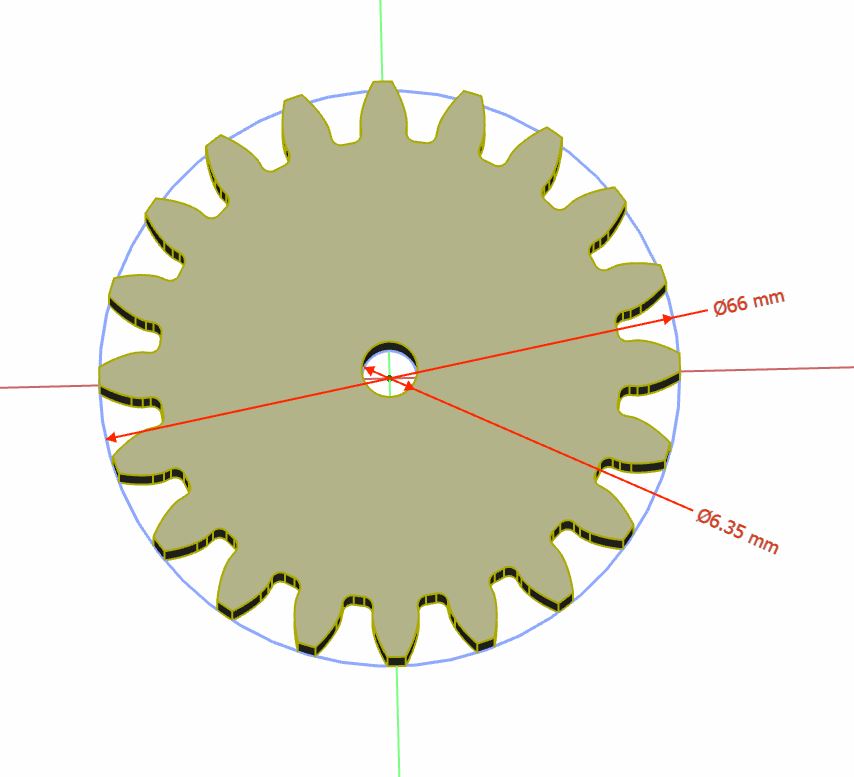

20T: material thickness 8 mm (0,315 in), hole 6,35 mm (0,25 in), outer diameter 66 mm (2,6 in);

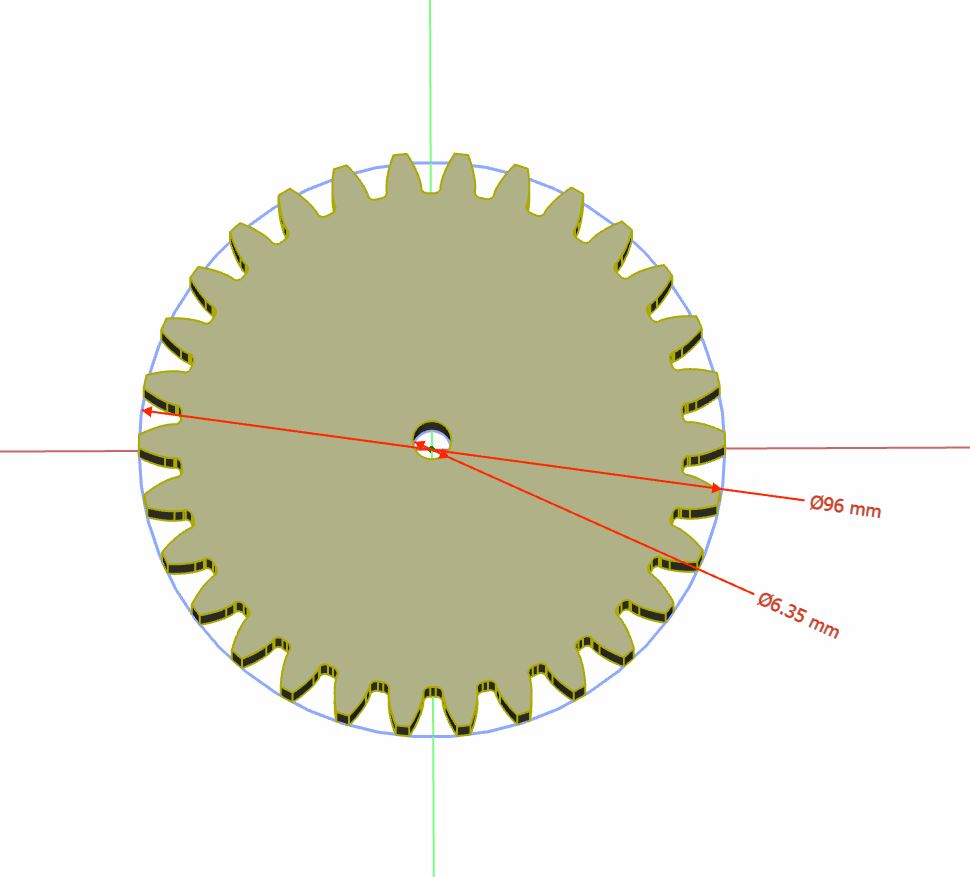

30T: material thickness 8 mm (0,315 in), hole 6,35 mm (0,25 in), outer diameter 96 mm (3,78 in);

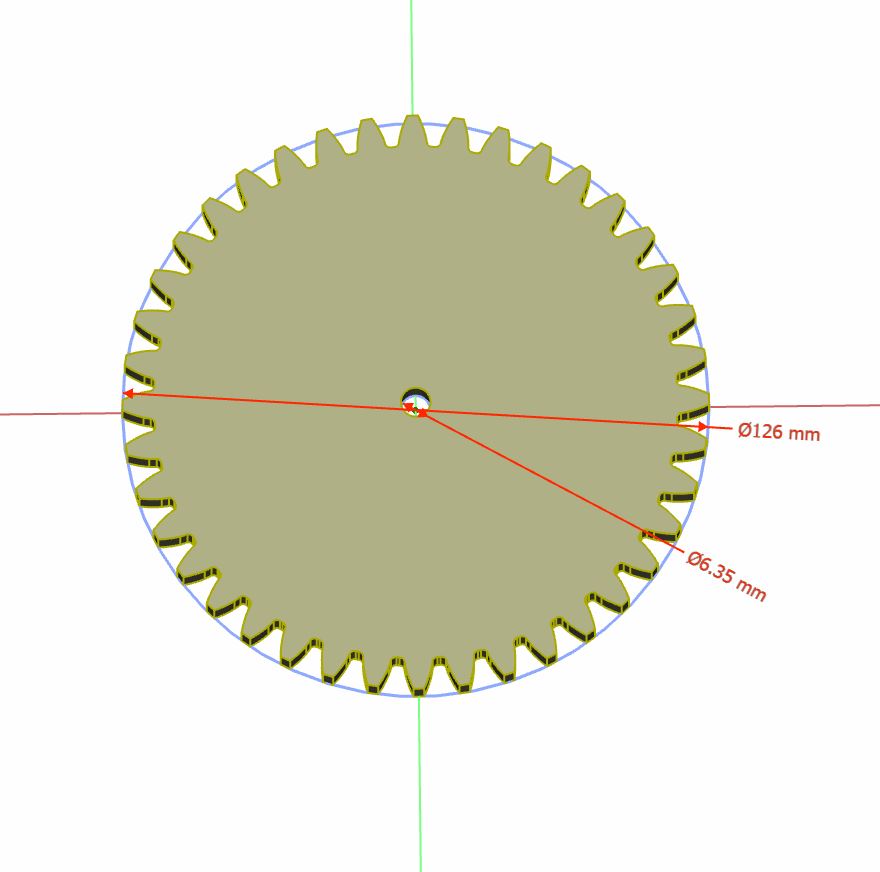

40T: material thickness 8 mm (0,315 in), hole 6,35 mm (0,25 in), outer diameter 126 mm (4,96 in);

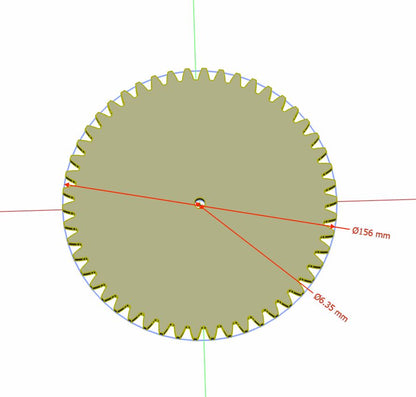

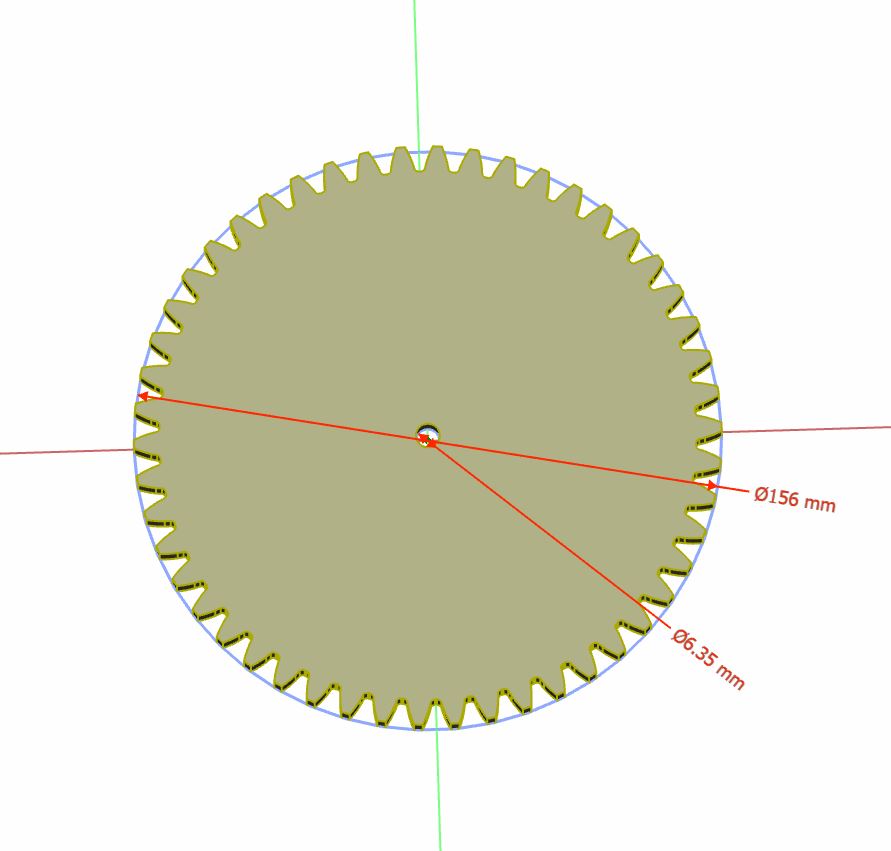

50T: material thickness 8 mm (0,315 in), hole 6,35 mm (0,25 in), outer diameter 156 mm (6,14 in);

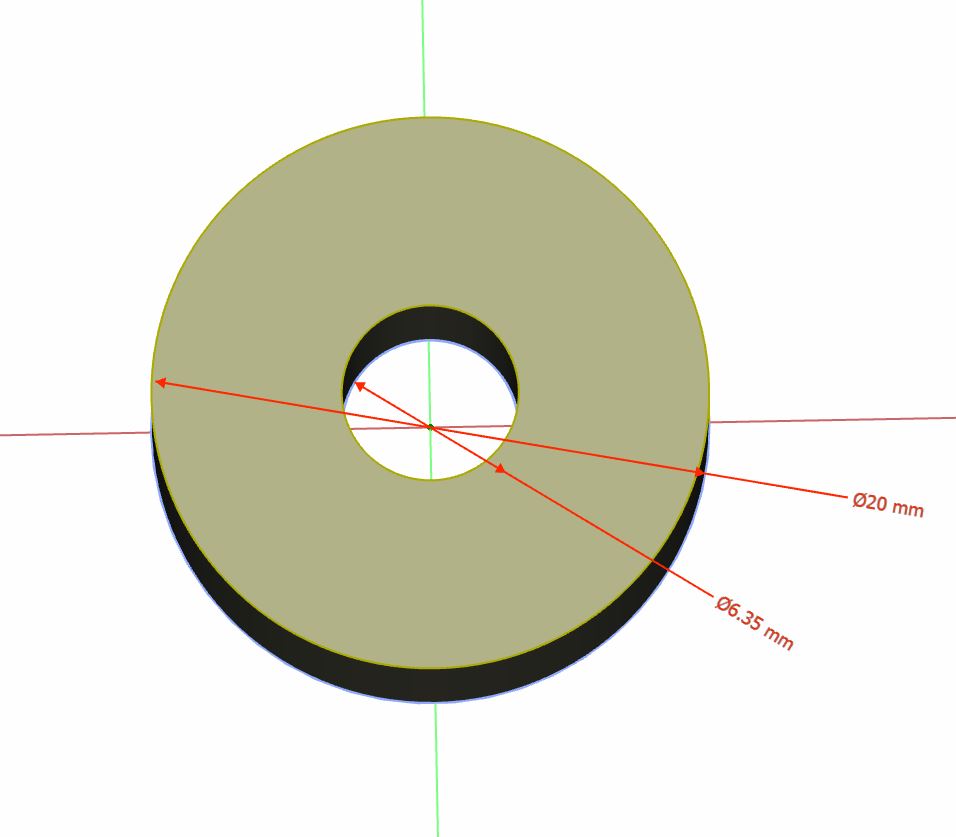

Spacer: material thickness 8 mm (0,315 in), hole 6,35 mm (0,25 in), outer diameter 20 mm (0,78 in);

For the CNC cutting I recommend chose Endmill 3,175 mm (0,125 in).
The images are for illustration purposes only. You will be supplied with digital files that can be used with a laser cutter in order to make the item yourself.

The files allow for material such as wood, plywood or acrylic.
When you purchase this listing you will receive the following:
7x SVG vector filee
7x DXF files
7x PDF files
7x JPG files
7x STL files

INSTANT DOWNLOAD
This is a digital product that can be downloaded. No physical product will be shipped.

The files should be available for download after a successful payment. Immediately after payment, you will receive the download link by email.

Please contact me if there are any problems with the files or the downloading process.
