Sprocket wheels set. Gear set. CNC routing, Laser cutting, 3D printing, Hand cut digital files: svg, dxf, pdf, jpg, stl

Sprocket wheels set. Gear set. CNC routing, Laser cutting, 3D printing, Hand cut digital files: svg, dxf, pdf, jpg, stl

Regular price €3,20 EUR
Regular price Sale price €3,20 EUR
Sale Sold out
Shipping calculated at checkout.
Sprocket wheels. Gear. For CNC routing, Laser cutting, 3D printing, Hand cut. Digital files: svg, dxf, pdf, jpg, stl

A set of gears is a great tool to help you make moving toys, decorations, or moving mechanisms. A large selection of gears will provide a variety of options for choosing the required speed transmission ratio.

The dimensions of the gears are selected so that they can be produced using different tools: CNC router, laser cut, 3D printer or hand cut. Various materials can be used for the production of gears: Plywood, wood, acrylic, cardboard...

Sprocket wheels measurement:

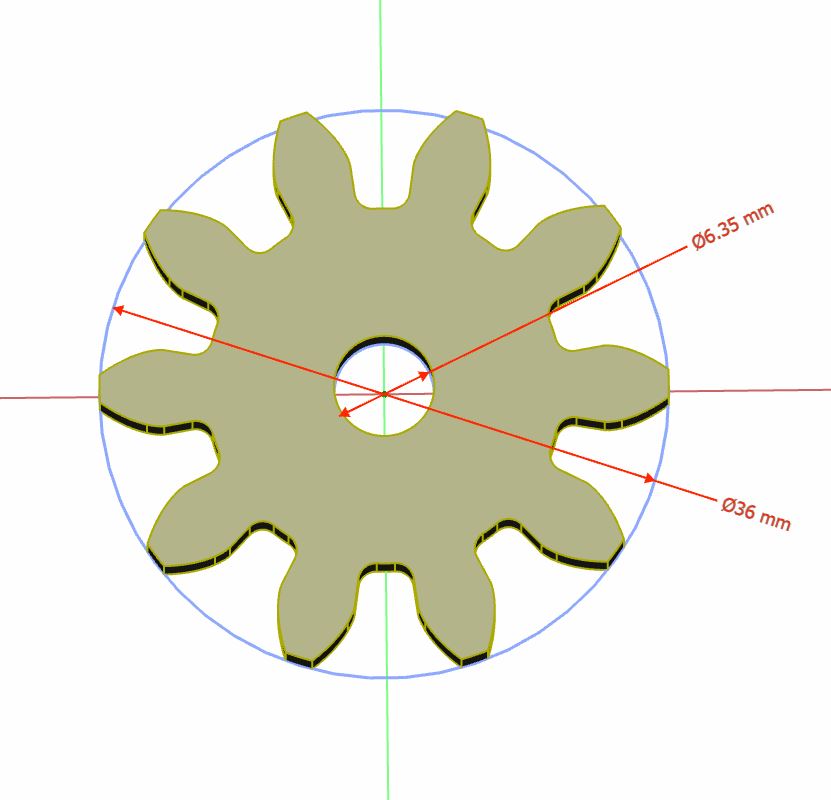

10T: material thickness 8 mm (0.315 in), hole 6.35 mm (0.25 in), outer diameter 36 mm (1.41 in);

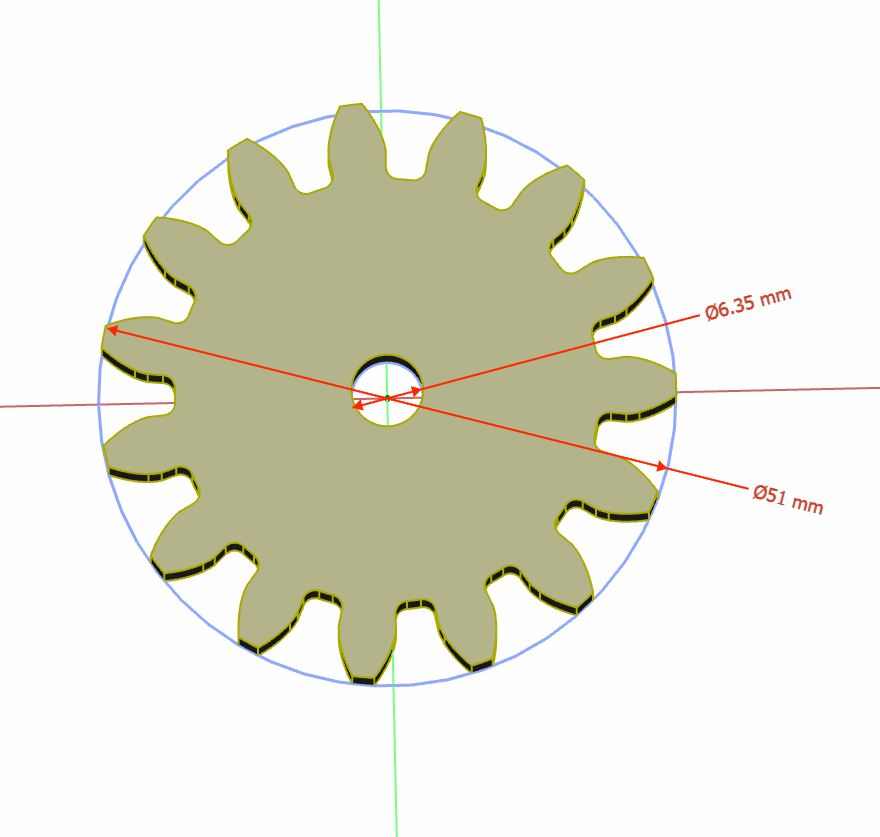

15T: material thickness 8 mm (0.315 in), hole 6.35 mm (0.25 in), outer diameter 51 mm (2 in);

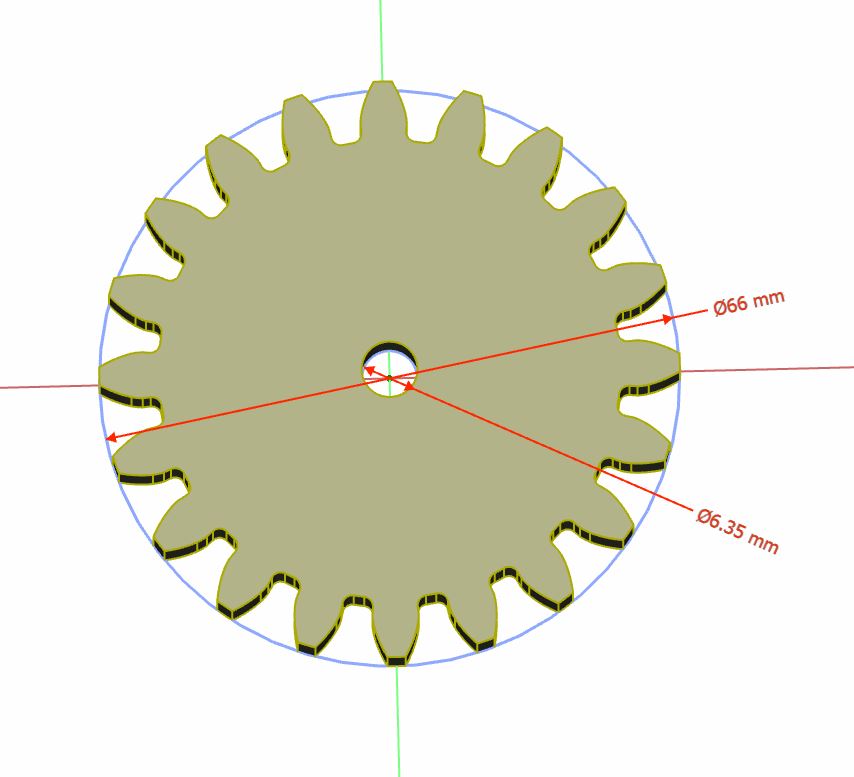

20T: material thickness 8 mm (0.315 in), hole 6.35 mm (0.25 in), outer diameter 66 mm (2.6 in);

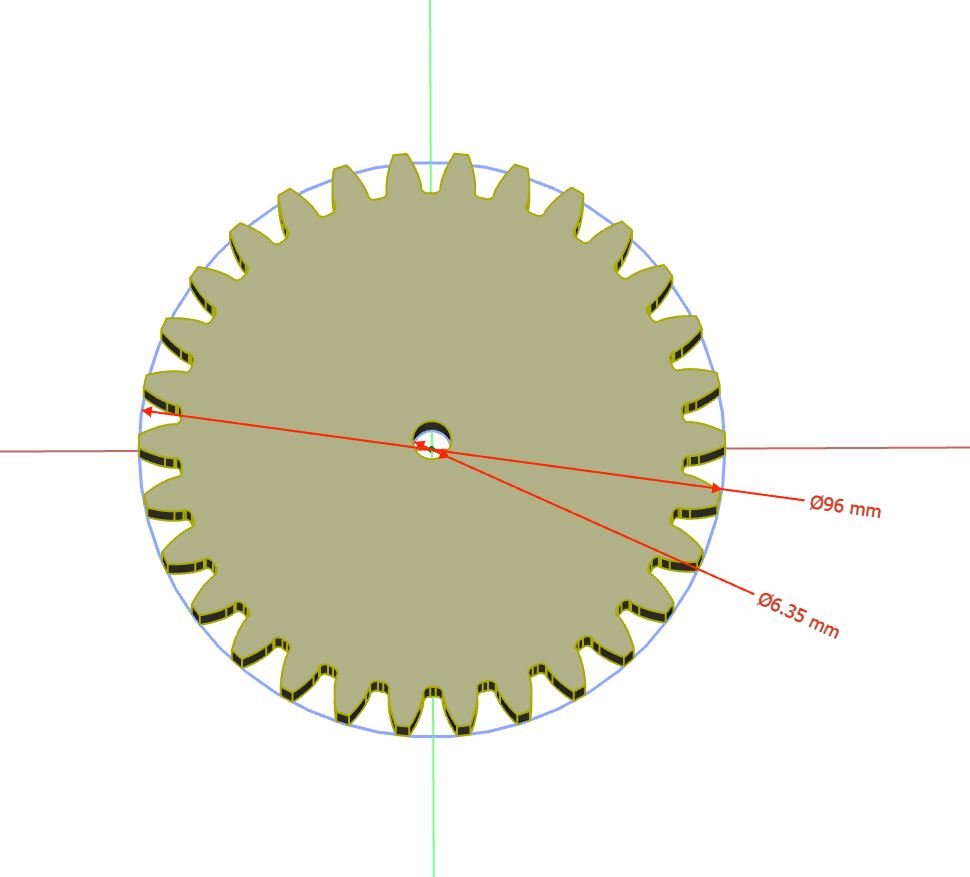

30T: material thickness 8 mm (0.315 in), hole 6.35 mm (0.25 in), outer diameter 96 mm (3.78 in);

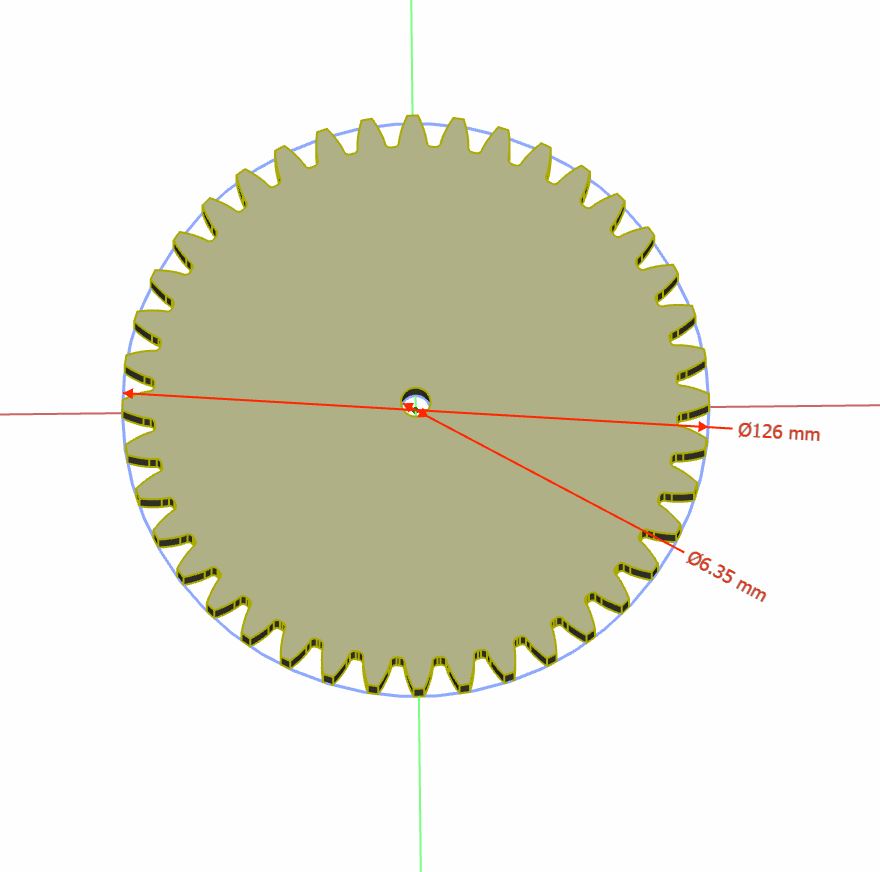

40T: material thickness 8 mm (0.315 in), hole 6.35 mm (0.25 in), outer diameter 126 mm (4.96 in);

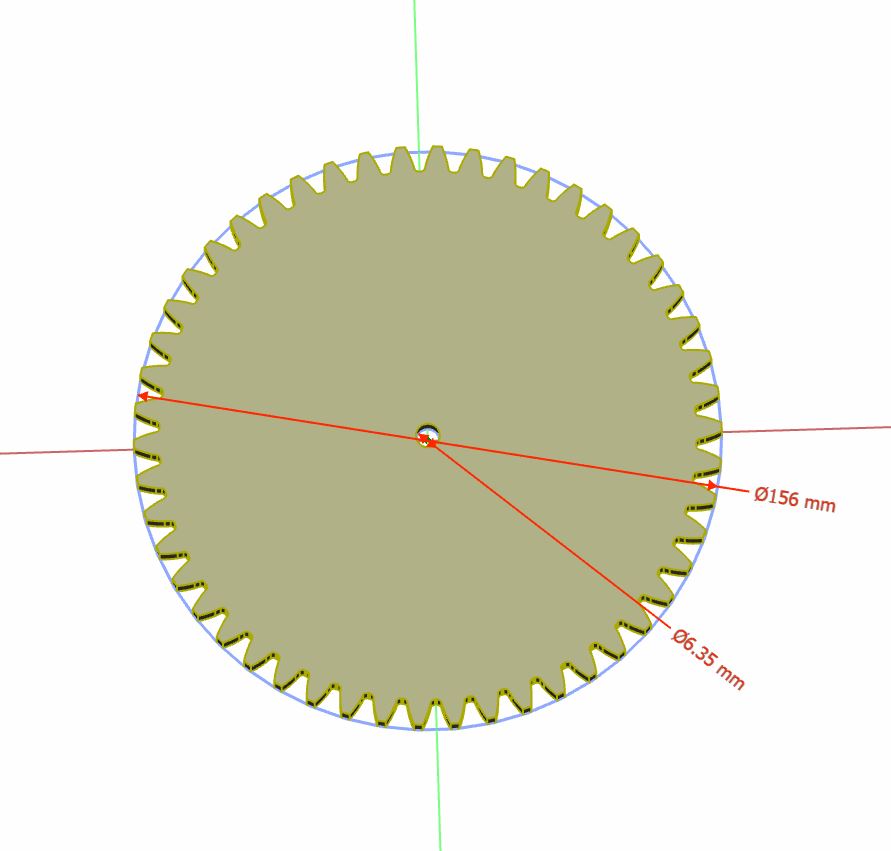

50T: material thickness 8 mm (0.315 in), hole 6.35 mm (0.25 in), outer diameter 156 mm (6.14 in);

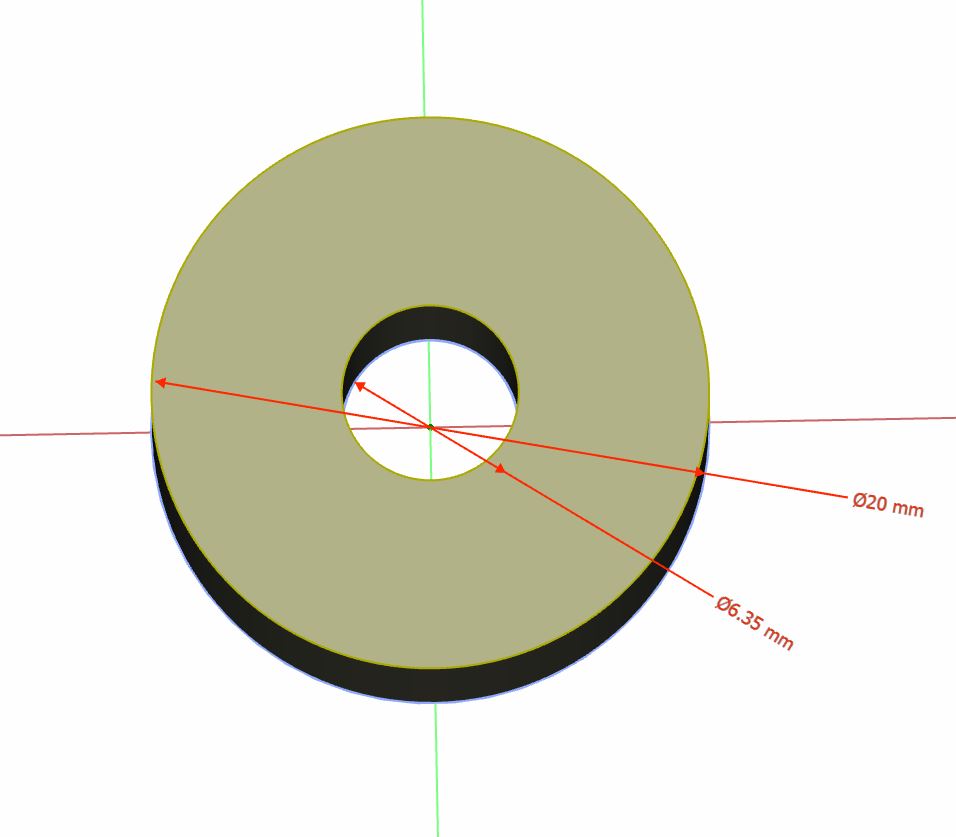

Spacer: material thickness 8 mm (0.315 in), hole 6.35 mm (0.25 in), outer diameter 20 mm (0.78 in);

For the CNC cutting I recommend choosing Endmill 3.175 mm (0.125 in).
The images are for illustration purposes only. You will be supplied with digital files that can be used with a laser cutter in order to make the item yourself.

The files allow for material such as wood, plywood or acrylic.
When you purchase this listing you will receive the following:
7x SVG vector files
7x DXF files
7x PDF files
7x JPG files
7x STL files

INSTANT DOWNLOAD
This is a digital product that can be downloaded. No physical product will be shipped.

The files should be available for download after a successful payment. Please contact me before leaving feedback if there is any problem with the file or downloading.
Terms of Use: The digital clipart's are only for your personal use.
